What’s AutoGadgetFS ?
AutoGadgetFS is an open source framework that allows users to assess USB devices and their associated hosts/drivers/software without an in-depth knowledge of the USB protocol. The tool is written in Python3 and utilizes RabbitMQ and WiFi access to enable researchers to conduct remote USB security assessments from anywhere around the globe. By leveraging ConfigFS, AutoGadgetFS allows users to clone and emulate devices quickly, eliminating the need to dig deep into the details of each implementation. The framework also allows users to create their own fuzzers on top of it.
Requirments:
-
Host machine running Linux (Debian/Ubuntu/Kali)
-
Raspberry Pi Zero with WIFI support
-
Target machine options:
- Virtual Machine
- Standalone machine
-
2 x USB micro cables
-
Target USB device
-
Hardware debugger ( Optional )
The Setup:
Device testing only:
![AutoGadgetFS - USB Testing Made Easy 2 AutoGadgetFS 3 devtest](https://www.redpacketsecurity.com/wp-content/uploads/2020/10/AutoGadgetFS_3_devtest.jpeg)

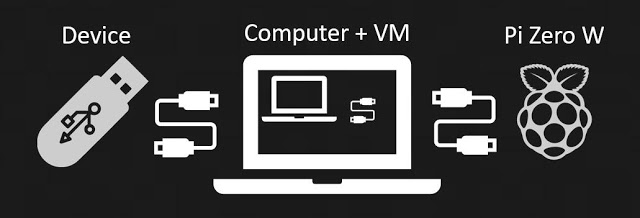

Minimal agfs in the middle setup:
![AutoGadgetFS - USB Testing Made Easy 3 AutoGadgetFS 4 scenario1](https://www.redpacketsecurity.com/wp-content/uploads/2020/10/AutoGadgetFS_4_scenario1.jpeg)
![AutoGadgetFS - USB Testing Made Easy 3 AutoGadgetFS 4 scenario1](https://www.redpacketsecurity.com/wp-content/uploads/2020/10/AutoGadgetFS_4_scenario1.jpeg)

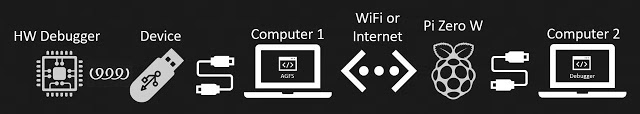

Complete agfs in the middle setup with debugging support:
![AutoGadgetFS - USB Testing Made Easy 4 AutoGadgetFS 5 scenario2](https://www.redpacketsecurity.com/wp-content/uploads/2020/10/AutoGadgetFS_5_scenario2.jpeg)
![AutoGadgetFS - USB Testing Made Easy 4 AutoGadgetFS 5 scenario2](https://www.redpacketsecurity.com/wp-content/uploads/2020/10/AutoGadgetFS_5_scenario2.jpeg)
USB Device class support:
USB HID Devices fully supported (Man in the middle)
Device only testing .. All USB devices (NO Man in the middle)
Future releases… All USB devices (Man in the middle)
Capabilities:
- Find, Select and Attach to a USB device with ease.
- Emulate any USB HID device .
- Perform AGFS in the middle sniffing for HID devices ( save communication to disk ).
- Device sniffing ( Any device ).
- Multiple Fuzzers allow you to Fuzz a device or a host.
- Random fuzzers ( with fixed or random length packets ).
- Smart Fuzzers that learn from previous USB communications.
- Describe Fuzzer to tell the Fuzzer which bytes to Fuzz leaving the rest of the packet the same.
- Gadget Fuzzer.
- Sequential Fuzzer.
- Control transfer Enumerator.
- Replay of packets from a file.
- Replay of packets from a saved USBLyzer capture.
- Visual way of presenting packets to allow ease of reverse engineering of the communication.
- Alerts for device in DFU mode, or if the device leaks information.
- USB device and host can be anywhere on the internet.
- Monitor sudden interface changes.
RoadMap:
- Sniff control transfer requests to a device and reply to them.
- MITM and emulate all types of devices.
- Console/QT based interface.
- More Interfaces/endpoints support on the RPI zero W.
- Support more boards like the greatfet.
- Move to a custom board.
- Work on making raspberry pi have full support for usb device emulation with all interfaces.
- correlate sent and received packets via sequence numbers.
Installation:
Linux Machine:
-
Note: WSL/WSL2 is not supported due to issues with USB pass-through.
-
Install Python3, ipython3 ,git, pip and rabbitMQ server
sudo apt install python3 ipython3 git python3-pip rabbitmq-server dfu-util
sudo service rabbitmq-server start -
Clone the repository
git clone https://github.com/ehabhussein/AutoGadgetFS
cd AutoGadgetFS -
Install the requirements
sudo -H pip3 install -r requirements.txt
-
Downgrade prompt toolkit for better ipython experience:
sudo python3 -m pip install prompt-toolkit~=2.0
-
Enable the web interface for rabbitMQ
sudo rabbitmq-plugins enable rabbitmq_management
http://localhost:15672/ to reach the web interface -
login to the web interface with the credentials guest:guest
-
NOTE: if you are not installing rabbitMQ on
localhost
add the following user and login with it:sudo rabbitmqctl add_user autogfs usb4ever
sudo rabbitmqctl set_user_tags autogfs administrator -
Upload the rabbitMQ configuration file
- In the overview tab scroll to the bottom to import definitions
- Upload the file found in: rabbitMQbrokerconfig/rabbitmq-Config.json
sudo service rabbitmq-server restart
-
-
Test the installation
sudo ipython3
Python 3.7.7 (default, Apr 1 2020, 13:48:52)
Type 'copyright', 'credits' or 'license' for more information
IPython 7.9.0 -- An enhanced Interactive Python. Type '?' for help.
In [1]: import libagfs
In [2]: x = libagfs.agfs()
***************************************
AutoGadgetFS: USB testing made easy
***************************************
Enter IP address of the rabbitmq server: 127.0.0.1
In [3]: exit
sudo `python3` agfsconsole.py
***************************************
AutoGadgetFS: USB testing made easy
***************************************
Enter IP address of the rabbitmq server: 127.0.0.1
Give your project a name?!: -
Patch Pyusb langID ( Not needed unless you get pyusb errors for langID ):
- Edit the file
/usr/local/lib/python3/dist-packages/usb/util.py
-
make changes to the
def get_string
method to look like below:if 0 == len(langids):
return "Error Reading langID"
#raise ValueError("The device has no langid")
if langid is None:
langid = langids[0]
elif langid not in langids:
return "Error Reading langID"
#raise ValueError("The device does not support the specified langid") -
If you prefer to use
patch
apply the following patch to the file:AutoGadgetFS/pyusb_patches/pyusb_langid.patch
-
- Edit the file
Raspberry Pi Zero W:
-
Obtain a copy of Raspian Lite Edition
- Burn the Image to the SD card using BalenaEtcher
-
Mount the SD card on your machine and make the following changes:
-
In the
/path/to/sdcard/boot/config.txt
file add to the very end of the file:enable_uart=1
dtoverlay=dwc2 -
In the
/path/to/sdcard/boot/cmdline.txt
add right afterrootwait
modules-load=dwc2
-
it should look like this make sure its on the same line:
console=serial0,115200 console=tty1 root=PARTUUID=6c586e13-02 rootfstype=ext4 elevator=deadline fsck.repair=yes rootwait modules-load=dwc2
-
-
Enable ssh:
-
in the
/path/to/sdcard/boot
directory create an empty file name ssh:sudo touch /path/to/sdcard/boot/ssh
-
-
Enable Wifi:
-
in the
/path/to/sdcard/boot
directory create an file namedwpa_supplicant.conf
:sudo vim /path/to/sdcard/boot/wpa_supplicant.conf
-
Add the following contents:
ctrl_interface=DIR=/var/run/wpa_supplicant GROUP=netdev
update_config=1
country=US
network={
ssid="<your wifi SSID>"
psk="<your wifi password>"
key_mgmt=WPA-PSK
}
-
-
Unmount the SD card and place it back into the Raspberry Pi Zero and power it on.
-
Copy the content of
AutogadgetFS/Pizero/
to the Pi zero:username: pi
&password: raspberry
cd AutogadgetFS/Pizero/
scp gadgetfuzzer.py removegadget.sh requirements.txt router.py pi@<pi-ipaddress>:/home/pi -
SSH into the PI Zero and setup requirements for AutoGadgetFS:
ssh pi@<pi-ip-address>
chmod +x removegadget.sh
sudo apt update
sudo apt install python3 python3-pip
sudo -H pip3 install -r requirements.txt -
Upgrading the latest kernel and adding modules (* This step is optional for the current release): ( This will take a very long time compiling on the Pi Zero, unless you choose to cross compile the kernel see Compiling options)
sudo bash
apt install git bc bison flex libssl-dev make libncurses5-dev screen
screen
mkdir Downloads
cd Downloads/
git clone --depth=1 https://github.com/raspberrypi/linux
cd linux/
make bcmrpi_defconfig

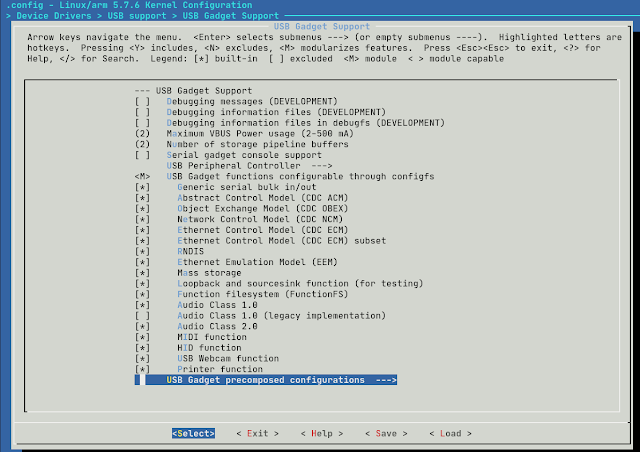

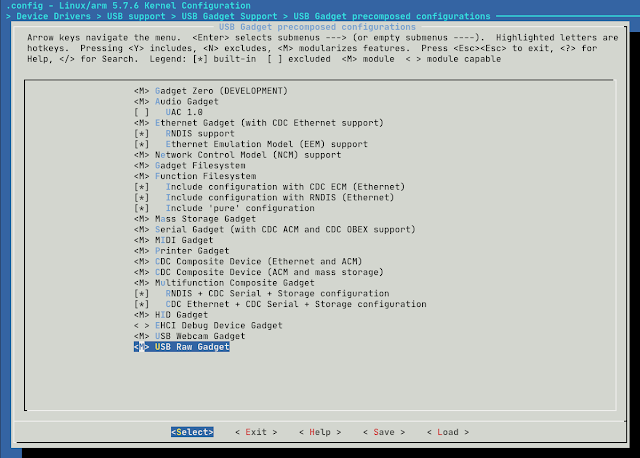

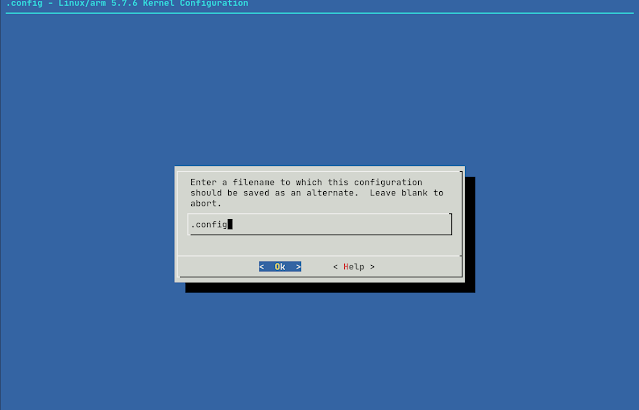

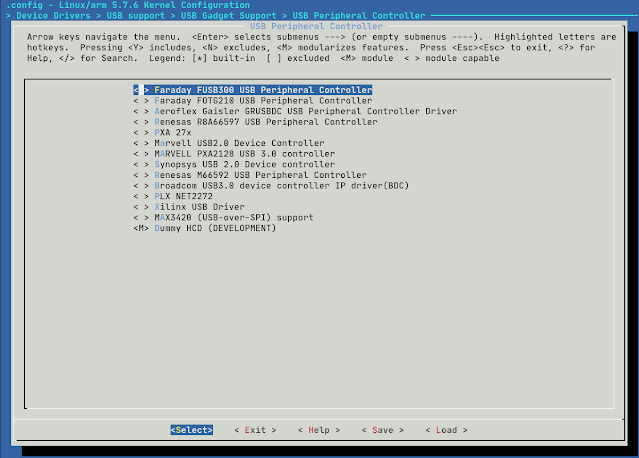

make menuconfig- Enable the Modules and save the config:
- Build and use the kernel:
make zImage modules dtbs
make modules_install
cp arch/arm/boot/dts/*.dtb /boot/
cp arch/arm/boot/dts/overlays/*.dtb* /boot/overlays/
cp arch/arm/boot/dts/overlays/README /boot/overlays/
cp arch/arm/boot/zImage /boot/kernel.img
reboot
And you’re done!
AutoGadgetFS tutorial:
Click to visit the tutorial
Screenshots:

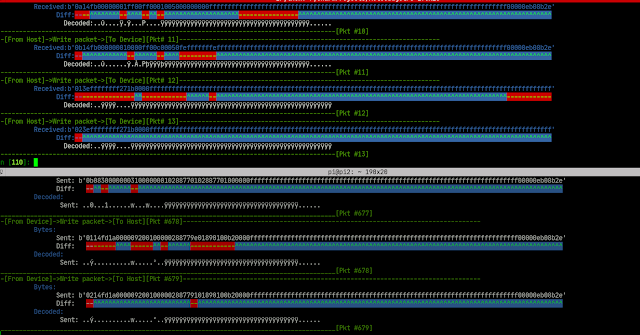

Man in the Middle:
![AutoGadgetFS - USB Testing Made Easy 9 AutoGadgetFS 10 mitm](https://www.redpacketsecurity.com/wp-content/uploads/2020/10/AutoGadgetFS_10_mitm.png)
![AutoGadgetFS - USB Testing Made Easy 9 AutoGadgetFS 10 mitm](https://www.redpacketsecurity.com/wp-content/uploads/2020/10/AutoGadgetFS_10_mitm.png)
USB device fuzzing:
![AutoGadgetFS - USB Testing Made Easy 10 AutoGadgetFS 11 devfuzzer](https://www.redpacketsecurity.com/wp-content/uploads/2020/10/AutoGadgetFS_11_devfuzzer.png)
![AutoGadgetFS - USB Testing Made Easy 10 AutoGadgetFS 11 devfuzzer](https://www.redpacketsecurity.com/wp-content/uploads/2020/10/AutoGadgetFS_11_devfuzzer.png)

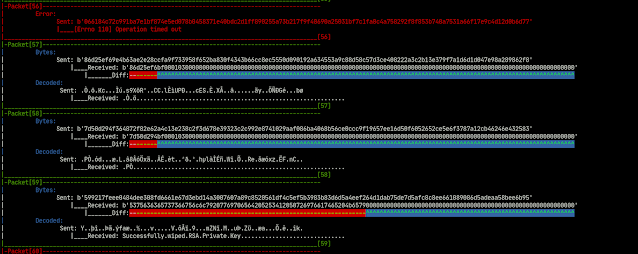

Host side fuzzing with code covereage:
![AutoGadgetFS - USB Testing Made Easy 11 AutoGadgetFS 12 codecov](https://www.redpacketsecurity.com/wp-content/uploads/2020/10/AutoGadgetFS_12_codecov.png)
![AutoGadgetFS - USB Testing Made Easy 11 AutoGadgetFS 12 codecov](https://www.redpacketsecurity.com/wp-content/uploads/2020/10/AutoGadgetFS_12_codecov.png)

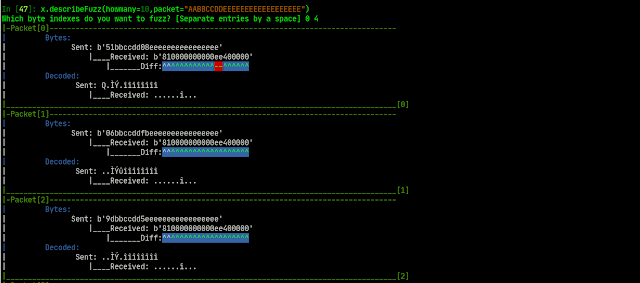

Fuzzer based on a selection of bytes:
![AutoGadgetFS - USB Testing Made Easy 12 AutoGadgetFS 13 selectivefuzz](https://www.redpacketsecurity.com/wp-content/uploads/2020/10/AutoGadgetFS_13_selectivefuzz.png)
![AutoGadgetFS - USB Testing Made Easy 12 AutoGadgetFS 13 selectivefuzz](https://www.redpacketsecurity.com/wp-content/uploads/2020/10/AutoGadgetFS_13_selectivefuzz.png)
Smart fuzzer based on learning traffic:
In [44]: x.devSmartFuzz(engine="smart",samples=5,filename="/home/raindrop/PycharmProjects/AutoGadgetFs/binariesdb/Nud-Nuvoton-1046-20764-1590421333.5169587-Nuvoton-1046-20764-1590421600.8067
...: 274-device.bin")
[+]General Statistics
Full charset : !"#$%&'()*+,-./0123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[]^_`abcdefghijklmnopqrstuvwxyz{|}~
Discarded charset : !"#$%&'()*+,-./:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[]^_`ghijklmnopqrstuvwxyz{|}~
Final charset : 0123456789abcdef
Word Length : 128
Lower Case index usage : 92%
Lower Case index locations : [1, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 121, 122, 124, 125, 127]
Upper Case index usage : 0%
Upper Case index locations : []
Digit index usage : 96%
Digit index locations : [0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 12 3, 126]
NonAN index usage : 0%
NonAN index locations : []
Counter statistics : Uppercase: 0 , Lowercase: 133071, Digits:212017 , NonAlphaNumeric:0
All char Frequencies :
character:5 found:5012 times
character:2 found:22563 times
character:3 found:12197 times
character:8 found:15008 times
character:4 found:13275 times
character:0 found:98056 times
character:1 found:17861 times
character:f found:87823 times
character:d found:7221 times
character:7 found:9614 times
character:a found:11148 times
character:6 found:10472 times
character:b found:8189 times
character:9 found:7959 times
character:c found:9172 times
character:e found:9518 times
***********************
generated:5 Packets
***********************
Out[44]:
['5608305852bf2ffd61770e2c827542f20be0b0fcba09db916bd07e1734b04cb0352b1d278068064d19f033bfad6fa90e53d865693fd4fee0214f00000eb0aa2c',
'3b08 3595f276e2f1353a535c32f0f59516fc9328f7673bb80262c4da11c93683afe6dcff8a7a83018d78f41498a0da4d141ebd39c361b1724f2b00000eb0aa2c',
'0120961963495c4dab9470738b497eddde07b0d70b357795ad9554d7964761969a6d997205e17eada6fa84eb33dcfb11412f75e04c195001283900000eb0aa2c',
'091065d52127bbc6e840e02f8e1316f1c4d9c92a23931c00cdbb8c158368852ef8fabd461b98812b51ec84e1ccc5c04aaa366fbafabec623bd3500000eb0aa2c',
'7300cc61151b7af27a578e766f49bebb2de68c48b37a00df1030ae464f456928eedd035303e697208bf58217af728a2a346fda5c8aef0335b82e00000eb0aa2c'
In [46]: x.edap.packets
Out[46]:
['5608305852bf2ffd61770e2c827542f20be0b0fcba09db916bd07e1734b04cb0352b1d278068064d19f033bfad6fa90e53d865693fd4fee0214f00000eb0aa2c',
'3b083595f276e2f1353a535c32f0f59516fc9328f7673bb80262c4da11c93683afe6dcff8a7a83018d78f41498a0da4d141ebd3 9c361b1724f2b00000eb0aa2c',
'0120961963495c4dab9470738b497eddde07b0d70b357795ad9554d7964761969a6d997205e17eada6fa84eb33dcfb11412f75e04c195001283900000eb0aa2c',
'091065d52127bbc6e840e02f8e1316f1c4d9c92a23931c00cdbb8c158368852ef8fabd461b98812b51ec84e1ccc5c04aaa366fbafabec623bd3500000eb0aa2c',
'7300cc61151b7af27a578e766f49bebb2de68c48b37a00df1030ae464f456928eedd035303e697208bf58217af728a2a346fda5c8aef0335b82e00000eb0aa2c']

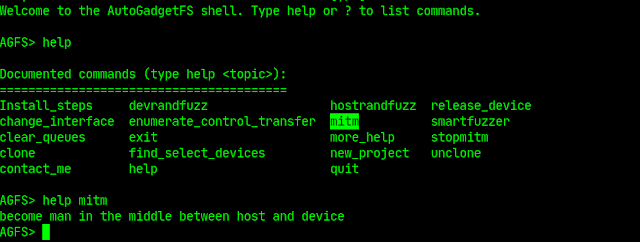

Help method:
In [15]: x.help("")
Currently supported methods:
__________________________________________________________________________________________________________________________________________________________________
Method ||-->Description
----------------------------------------------------------------------------------------------------------------------------
MITMproxy ||-->This method creates a connection to the RabbitMQ and listen on received messages on the todev queue
____________________________________________________________________________________________________________________________
MITMproxyRQueues ||-->This method reads from the queue todev and sends the request to the device its self.
________________________________________________________ ____________________________________________________________________
SmartFuzz ||-->This method is generates packets based on what it has learned from a sniff from either the host or the device
____________________________________________________________________________________________________________________________
chgIntrfs ||-->This method allows you to change and select another interface
____________________________________________________________________________________________________________________________
clearqueues ||-->this method clears all the queues on the rabbitMQ queues that are set up
____________________________________________________________________________________________________________________________
clonedev ||-->This method does not need any parameters it only saves a backup of the device incase you need to share it or use it later.
_____________________________________ _______________________________________________________________________________________
createctrltrsnfDB ||-->creates a SQLite database containing values that were enumerated from control transfer enumeration
____________________________________________________________________________________________________________________________
createdb ||-->create the sqlite table and columns from usblyzer captures
____________________________________________________________________________________________________________________________
decodePacketAscii ||-->This method decodes packet bytes back to Ascii
____________________________________________________________________________________________________________________________
describeFuzz ||-->This method allows you to describe a packet and select which bytes will be fuzzed
___________________________________________________________________________________________________ _________________________
devEnumCtrltrnsf ||-->This method enumerates all possible combinations of a control transfer request
____________________________________________________________________________________________________________________________
devReset ||-->This method Resets the device
____________________________________________________________________________________________________________________________
devWrite ||-->To use this with a method you would write to a device make sure to run the startSniffReadThread(self,endpoint=None, pts=None, queue=None,channel=None)
____________________________________________________________________________________________________________________________
devctrltrnsf ||-->This method allows you to send ctrl transfer requests to the target device
_________________________________________________________________________________________________________________ ___________
deviceInfo ||-->gets the complete info only for any usb connected to the host
____________________________________________________________________________________________________________________________
deviceInterfaces ||-->get all interfaces and endpoints on the device
____________________________________________________________________________________________________________________________
devrandfuzz ||-->this method allows you to create fixed or random size packets created using urandom
____________________________________________________________________________________________________________________________
devseqfuzz ||-->This method allows you to create sequential incremented packets and send them to the device
____________________________________________________________________________________________________________________________
findSelect ||-->This method enumera tes all USB devices connected and allows you to select it as a target device as well as its endpoints
____________________________________________________________________________________________________________________________
help ||-->AutogadgetFS Help method
____________________________________________________________________________________________________________________________
hostwrite ||-->This method writes packets to the host either targeting a software or a driver in control of the device
____________________________________________________________________________________________________________________________
hstrandfuzz ||-->this method allows you to create fixed or random size packets created using urandom and send them to the host queue
____________________________________________________________________________________________________________________________
monInterfaceChng ||-->Me thod in charge of monitoring interfaces for changes this is called from def startMonInterfaceChng(self)
____________________________________________________________________________________________________________________________
newProject ||-->creates a new project name if you were testing something else
____________________________________________________________________________________________________________________________
releasedev ||-->releases the device and re-attaches the kernel driver
____________________________________________________________________________________________________________________________
removeGadget ||-->This method removes the gadget from the raspberryPI
____________________________________________________________________________________________________________________________
replaymsgs ||-->This method searches the USBLyzer parsed database and give you the option rep lay a message or all messages from host to device
____________________________________________________________________________________________________________________________
searchmsgs ||-->This method allows you to search and select all messages for a pattern which were saved from a USBlyzer database creation
____________________________________________________________________________________________________________________________
setupGadgetFS ||-->setup variables for gadgetFS : Linux Only, on Raspberry Pi Zero best option
____________________________________________________________________________________________________________________________
showMessage ||-->shows messages if error or warn or info
____________________________________________________________________________________________________________________________
sniffdevice ||-->read the communication between the device to hosts
______ ______________________________________________________________________________________________________________________
startMITMusbWifi ||-->Starts a thread to monitor the USB target Device
____________________________________________________________________________________________________________________________
startMonInterfaceChng||-->This method Allows you to monitor a device every 10 seconds in case it suddenly changes its interface configuration.
____________________________________________________________________________________________________________________________
startQueuewrite ||-->initiates a connection to the queue to communicate with the host
____________________________________________________________________________________________________________________________
startSniffReadThread ||-->This is a thread to continuously read the replies from the device and dependent on what you pass to the method either pts or que ue
____________________________________________________________________________________________________________________________
stopMITMusbWifi ||-->Stops theman in the middle thread between the host and the device
____________________________________________________________________________________________________________________________
stopMonInterfaceChang||-->Stops the interface monitor thread
____________________________________________________________________________________________________________________________
stopQueuewrite ||-->stop the thread incharge of communicating with the host machine
____________________________________________________________________________________________________________________________
stopSniffing ||-->Kills the sniffing thread strted by startSniffReadThread()
____________________________________________________________________________________________________________________________
usblyzerparse ||-->This method will parse your xml exported from usblyzer and then import them into a database
____________________________________________________________________________________________________________________________
In [16]: x.help("findSelect")
****
[+]Help for findSelect Method:
[-]Signature: findSelect(self, chgint=None)
[+]findSelect Help:
This method enumerates all USB devices connected and allows you to select it as a target device as well as its endpoints
****
AutoGadgetFS console. A much simpler way to use AGFS:
![AutoGadgetFS - USB Testing Made Easy 13 AutoGadgetFS 14 agfsconsole](https://www.redpacketsecurity.com/wp-content/uploads/2020/10/AutoGadgetFS_14_agfsconsole.png)
![AutoGadgetFS - USB Testing Made Easy 13 AutoGadgetFS 14 agfsconsole](https://www.redpacketsecurity.com/wp-content/uploads/2020/10/AutoGadgetFS_14_agfsconsole.png)
Youtube Playlist:
Youtube Playlist
Join Slack:
Visit AutogadgetFS Slack Channel
Contact:
[email protected]
https://twitter.com/0xRaindrop
If you like the site, please consider joining the telegram channel or supporting us on Patreon using the button below.
