HandleKatz – PIC Lsass Dumper Using Cloned Handles

This tool was implemented as part of our Brucon2021 conference talk and demonstrates the usage of cloned handles to Lsass in order to create an obfuscated memory dump of the same.

It compiles down to an executable living fully in its text segment. Thus, the extracted .text segment of the PE file is fully position independent code (=PIC), meaning that it can be treated like any shellcode.

The execution of HandleKatz in memory has a very small footprint, as itself does not allocate any more executable memory and can therefore efficiently be combined with concepts such as (Phantom)DLL-Hollowing as described by @_ForrestOrr. This is in contrast to PIC PE loaders, such as Donut, SRDI or Reflective Loaders which, during PE loading, allocate more executable memory. Additionally, it makes use of a modified version of ReactOS MiniDumpWriteDumpA using direct system calls to write an obfuscated dump to disk.

For detailed information please refer to the PDF file PICYourMalware.pdf in this repository.

Usage

• make all to build HandleKatzPIC.exe, HandleKatz.bin and loader.exe

Please note that different compiler (versions) yield different results. This might produce a PE file with relocations.

All tests were carried out using x86_64-w64-mingw32-gcc mingw-gcc version 11.2.0 (GCC). The produced PIC was successfully tested on: Windows 10 Pro 10.0.17763. On other versions of windows, API hashes might differ.

To use the PIC, cast a pointer to the shellcode in executable memory and call it according to the definition:

DWORD handleKatz(BOOL b_only_recon, char* ptr_output_path, uint32_t pid, char* ptr_buf_output);

• b_only_recon If set, HandleKatz will only enumerate suitable handles without dumping
• ptr_output_path Determines where the obfuscated dump will be written to
• pid What PID to clone a handle from
• ptr_buf_output A char pointer to which HandleKatz writes its internal output

For deobfuscation of the dump file, the script Decoder.py can be used.

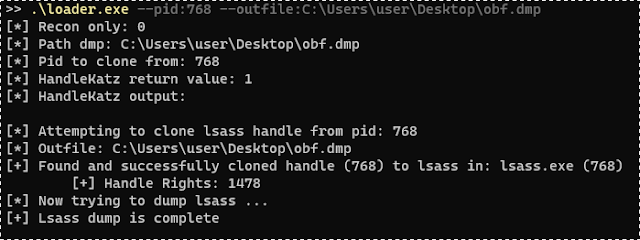

Loader implements a sample loader for HandleKatz:

loader.exe --pid:7331 --outfile:C:Tempdump.obfuscated

Detection

As cloned handles are used along with modified ReactOS code, no ProcessAccess events can be observed on Lsass. However, ProcessAccess events on programs which hold a handle to Lsass can be observed.

Defenders can monitor for ProcessAccess masks with set PROCESS_DUP_HANDLE (0x0040) to identify the usage of this tool.

Credits

• Implementation by our @thefLinkk, see C-To-Shellcode-Examples for more PIC examples.
• @Hasherezade for tutorials on the C-To-Shellcode concept
• @ParanoidNinja for tutorials on the C-To-Shellcode concept
• @_ForrestOrr for his amazing blogpost series on memory artifacts
• @rookuu_ for the idea to use ReactOS MiniDumpWriteDump
• Outflank for documenting direct syscalls and their InlineWhispers project
• React OS for the implementation of MiniDumpWriteDump
• Hilko Bengen for improving the makefile
