NinjaDroid – Ninja Reverse Engineering On Android APK Packages
NinjaDroid is a simple tool to reverse engineering Android APK packages.
Published at: https://snapcraft.io/ninjadroid
$ snap install ninjadroid --channel=beta
Overview
NinjaDroid uses AXMLParser together with a series of Python scripts based on aapt, keytool, string and such to extract a series of information from a given APK package, such as:
- List of files of the APK: file name, size, MD5, SHA-1, SHA-256 and SHA-512
AndroidManifest.xmlinfo: app name, package name, version, sdks, permissions, activities, services, broadcast-receivers, …CERT.RSA/DSAdigital certificate info: serial number, validity, fingerprint, issuer and owner- List of URLs, shell commands and other generic strings hard-coded into the
classes.dexfiles
Furthermore, NinjaDroid uses apktool and dex2jar to extract and store:
- JSON report file, which contains all the extracted APK info
AndroidManifest.xmlfile (thanks toapktool)CERT.RSA/DSAdigital certificate fileclasses.dexfiles- translated .jar file (thanks to
dex2jar) - disassembled smali files (thanks to
apktool) assets/andres/folders together with their content (thanks toapktool)
Installation
The first step is cloning the NinjaDroid repository, or downloading its source code.
$ git clone https://github.com/rovellipaolo/NinjaDroid
$ cd NinjaDroidNinjaDroid has several ways to be executed: natively in your local environment, in Docker, as a Flatpak (experimental) and as a Snap (experimental).
Native
To execute NinjaDroid in your local machine, you need to install Python 3.5 or higher, Java 8 or higher and binutils.
Optionally, if you have the Android SDK installed locally, you can use the SDK version of aapt instead of the included one. In order to do so, you need to change the aapt location in ninjadroid/aapt/Aapt.py (i.e. __AAPT_EXEC_PATH = "ninjadroid/aapt/aapt").
Linux
Just launch the following commands, which will install all the Python dependencies (making sure that aapt, apktool and dex2jar have executable permissions) and add a ninjadroid symlink to /usr/local/bin/.
$ make build-linux
$ make install
$ ninjadroid --helpMacOS
Just launch the following commands, which will install all the needed Python dependencies (making sure that aapt, apktool and dex2jar have executable permissions) and add a ninjadroid symlink to /usr/local/bin/.
$ make build-macos
$ make install
$ ninjadroid --helpDocker
To execute NinjaDroid in Docker, you need Docker installed.
To build the Docker image, launch the following commands:
$ make build-docker
$ docker run --name ninjadroid ninjadroid:latest ninjadroid --helpNote that you need to bind the directory containing the target APK package to the Docker image:
$ mkdir apks
$ cp /path/to/your/package.apk apks/package.apk
$ docker run --name ninjadroid -it --rm -v $(pwd)/apks:/apks ninjadroid:latest ninjadroid /apks/package.apk -ajAnd the same applies also to the output directory when using the -e/--extract option, to which you also need to grant permissions:
$ mkdir output
$ chmod 777
$ docker run --name ninjadroid --rm -v $(pwd)/apks:/apks -v $(pwd)/output:/output ninjadroid:latest ninjadroid /apks/package.apk -ae /outputFlatpak (experimental)
To execute NinjaDroid as a Flatpak, you need Flatpak and flatpak-builder installed.
Just launch the following commands, which will install all the needed Flatpak dependencies:
$ make build-flatpak
$ flatpak-builder --run flatpak/build flatpak/com.github.rovellipaolo.NinjaDroid.yaml ninjadroid --helpNOTE: The -e/--extract option does not work correctly at present (see: https://github.com/rovellipaolo/NinjaDroid/issues/21).
Snap (experimental)
To execute NinjaDroid as a Snap, you need Snap and snapcraft installed.
Just launch the following commands, which will install all the needed Snap dependencies:
$ make build-snap
$ make install-snap
$ ninjadroid --helpNOTE: The -e/--extract option does not work correctly when the snap is installed without using the --devmode option (see: https://github.com/rovellipaolo/NinjaDroid/issues/20).
Checkstyle
Once you’ve configured it (see the “Installation” section), you can also run NinjaDroid checkstyle as follows.
Native
To run the checkstyle in your local machine, launch the following command:
$ make checkstyleNOTE: This is using pylint under-the-hood.
You can also run the checkstyle automatically at every git commit by launching the following command:
$ make install-githooksDocker
To run the checkstyle in Docker, launch the following command:
$ make checkstyle-dockerTests
Once you’ve configured it (see the “Installation” section), you can also run NinjaDroid tests as follows.
Native
To run unit and regression tests in your local machine, launch the following commands:
$ make test
$ make regressionYou can also run the tests with coverage by launching the following command:
$ make test-coverageDocker
To run unit and regression tests in Docker, launch the following commands:
$ make test-docker
$ make regression-dockerFlatpak
To run regression tests in Flatpak, launch the following command:
$ make regression-flatpakSnap
To run regression tests in Snap, launch the following command:
$ make regression-snapUsage

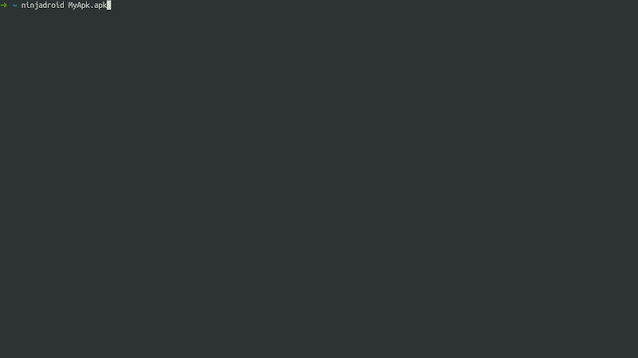

The following are examples of running NinjaDroid against the sample APK package.
Show APK summary
$ ninjadroid regression/data/Example.apkfile: regression/data/Example.apk
size: 70058
md5: c9504f487c8b51412ba4980bfe3cc15d
sha1: 482a28812495b996a92191fbb3be1376193ca59b
sha256: 8773441a656b60c5e18481fd5ba9c1bf350d98789b975987cb3b2b57ee44ee51
sha512: 559eab9840ff2f8507842605e60bb0730442ddf9ee7ca4ab4f386f715c1a4707766065d6f0b977816886692bf88b400643979e2fd13e6999358a21cabdfb3071
name: Example
cert:
file: META-INF/CERT.RSA
size: 906
md5: 860e19fa47d37d9510f1245c511a8578
sha1: 59a04084c0d5ef23fd05f0f429dab6267ccb3d0b
sha256: 0efa622919417adfa6eb77770fd33d3bcd93265ac7343695e246dab1a7b6bfee
sha512: 2a5befcc0bcb14e44d7b7cb4322a76933ad3e90e5e1ffbb87ba31ee7cc0172725dcc98e9d414fb3a207bc107b2a7ca7563b5f954cac6bd41d77e4726c70a95a3
manifest:
file: AndroidManifest.xml
size: 6544
md5: 1f97f7e7ca62f39f8f81d79b1b540c37
sha1: 011316a011e5b8738c12c662cb0b0a6ffe04ca74
sha256: 7c8011a46191ecb368bf2e0104049abe b98bae8a7b1fa3328ff050aed85b1347
sha512: 8c7c1ede610f9c6613418b46a52a196ad6d5e8cc067c2f26b931738ad8087f998d9ea95e80ec4352c95fbdbb93a4f29c646973535068a3a3d584da95480ab45f
package: com.example.app
version:
code: 1
name: 1.0
sdk:
min: 10
target: 20
max: 20
permissions:
- android.permission.INTERNET
- android.permission.READ_EXTERNAL_STORAGE
- android.permission.RECEIVE_BOOT_COMPLETED
- android.permission.WRITE_EXTERNAL_STORAGE
dex:
file: classes.dex
size: 2132
md5: 7bc52ece5249ccd2d72c4360f9be2ca5
sha1: 89476799bf92798047ca026c922a5bc33983b008
sha256: 3f543c68c4c059548cec619a68f329010d797e5e4c00aa46cd34c0d19cabe056
sha512: 0725f961bc1bac47eb8dd045c2f0a0cf5475fd77089af7ddc3098e341a95d8b5624969b6fa47606a05d5a6adf9d74d0c52562ea41a376bd3d7d0aa3695ca2e22Show APK extended information in JSON format
$ ninjadroid regression/data/Example.apk --all --json{
"cert": {
"file": "META-INF/CERT.RSA",
"fingerprint": {
"md5": "",
"sha1": "5A:C0:6C:32:63:7F:5D:BE:CA:F9:38:38:4C:FA:FF:ED:20:52:43:B6",
"sha256": "E5:15:CC:BC:5E:BF:B2:9D:A6:13:03:63:CF:19:33:FA:CE:AF:DC:ED:5D:2F:F5:98:7C:CE:37:13:64:4A:CF:77",
"signature": "SHA1withRSA",
"version": "3"
},
"issuer": {
"city": "City",
"country": "XX",
"domain": "",
"email": "",
"name": "Name",
"organization": "Organization",
"state": "State",
"unit": "Unit"
},
"md5": "860e19fa47d37d9510f1245c511a8578",
"owner": {
"city": "City",
"country": "XX",
"domain": "",
"email": "",
"name": "Name",
"organiz ation": "Organization",
"state": "State",
"unit": "Unit"
},
"serial_number": "558e7595",
"sha1": "59a04084c0d5ef23fd05f0f429dab6267ccb3d0b",
"sha256": "0efa622919417adfa6eb77770fd33d3bcd93265ac7343695e246dab1a7b6bfee",
"sha512": "2a5befcc0bcb14e44d7b7cb4322a76933ad3e90e5e1ffbb87ba31ee7cc0172725dcc98e9d414fb3a207bc107b2a7ca7563b5f954cac6bd41d77e4726c70a95a3",
"size": 906,
"validity": {
"from": "2015-06-27 10:06:13Z",
"until": "2515-02-26 10:06:13Z"
}
},
"dex": [
{
"file": "classes.dex",
"md5": "7bc52ece5249ccd2d72c4360f9be2ca5",
"sha1": "89476799bf92798047ca026c922a5bc33983b008",
"sha256": "3f543c68c4c059548cec619a68f329010d797e5e4c00aa46cd34c0d19cabe056",
"sha512": "0725f961bc1bac47eb8dd045c2f0a0cf5475fd77089af7ddc3098e 341a95d8b5624969b6fa47606a05d5a6adf9d74d0c52562ea41a376bd3d7d0aa3695ca2e22",
"shell_commands": [
"set"
],
"size": 2132,
"strings": [
"!Lcom/example/app/ExampleService2;",
"!Lcom/example/app/ExampleService3;",
"#Landroid/content/BroadcastReceiver;",
")Lcom/example/app/ExampleBrodcastReceiver;",
"*Lcom/example/app/ExampleBrodcastReceiver2;",
"*Lcom/example/app/ExampleBrodcastReceiver3;",
"*Lcom/example/app/ExampleBrodcastReceiver4;",
"<init>",
"Landroid/app/Activity;",
"Landroid/app/Service;",
"Landroid/content/Context;",
"Landroid/content/Intent;",
"Landroid/os/Bundle;",
"Landroid/os/IBinder;",
"Lcom/ example/app/ExampleService;",
"Lcom/example/app/HomeActivity;",
"Lcom/example/app/OtherActivity;",
"onBind",
"onCreate",
"onReceive",
"setContentView"
],
"urls": []
}
],
"file": "regression/data/Example.apk",
"manifest": {
"activities": [
{
"intent-filter": [
{
"action": [
"android.intent.action.MAIN"
],
"category": [
"android.intent.category.LAUNCHER"
]
}
],
"launchMode": "1",
"name": "com.example.app.HomeActivity"
},
{
"intent-filter": [
{
"action": [
"android.intent.action.VIEW"
],
"category": [
"android.intent.category.DEFAULT"
],
"data": [
{
"scheme": "content"
},
{
"scheme": "file"
},
{
"mimeType": "application/vnd.android.package-archive"
}
]
}
],
"launchMode": "1",
"meta-data": [
{
"name": "android.support.PARENT _ACTIVITY",
"value": "com.example.app.HomeActivity"
}
],
"name": "com.example.app.OtherActivity",
"noHistory": "true",
"parentActivityName": "com.example.app.HomeActivity"
}
],
"file": "AndroidManifest.xml",
"md5": "1f97f7e7ca62f39f8f81d79b1b540c37",
"package": "com.example.app",
"permissions": [
"android.permission.INTERNET",
"android.permission.READ_EXTERNAL_STORAGE",
"android.permission.RECEIVE_BOOT_COMPLETED",
"android.permission.WRITE_EXTERNAL_STORAGE"
],
"receivers": [
{
"name": "com.example.app.ExampleBrodcastReceiver"
},
{
"exported": false,
"intent-filter": [
{
"action": [
"android.intent.action.BOOT_COMPLETED",
"android.intent.action.MY_PACKAGE_REPLACED"
],
"priority": "1000"
}
],
"name": "com.example.app.ExampleBrodcastReceiver2"
},
{
"enabled": true,
"exported": false,
"intent-filter": [
{
"action": [
"android.intent.action.BROADCAST_PACKAGE_REMOVED",
"android.intent.action.PACKAGE_ADDED",
"android.intent.action.PACKAGE_REPLACED"
],
"data": [
{
"scheme": "package"
}
],
"priority": "800"
}
],
"name": "com.example.app.ExampleBrodcastReceiver3"
},
{
"enabled": false,
"exported": true,
"name": "com.example.app.ExampleBrodcastReceiver4"
}
],
"sdk": {
"max": "20",
"min": "10",
"target": "20"
},
"services": [
{
"name": "com.example.app.ExampleService"
},
{
"enabled": false,
"exported": true,
"isolatedProcess": true,
"name": "com.example.app.ExampleService2"
},
{
"enabled": true,
"exp orted": false,
"isolatedProcess": false,
"name": "com.example.app.ExampleService3"
}
],
"sha1": "011316a011e5b8738c12c662cb0b0a6ffe04ca74",
"sha256": "7c8011a46191ecb368bf2e0104049abeb98bae8a7b1fa3328ff050aed85b1347",
"sha512": "8c7c1ede610f9c6613418b46a52a196ad6d5e8cc067c2f26b931738ad8087f998d9ea95e80ec4352c95fbdbb93a4f29c646973535068a3a3d584da95480ab45f",
"size": 6544,
"version": {
"code": 1,
"name": "1.0"
}
},
"md5": "c9504f487c8b51412ba4980bfe3cc15d",
"name": "Example",
"other": [
{
"file": "res/drawable-hdpi-v4/ic_launcher.png",
"md5": "e74dbf28ebab4e1b7442a9c78067d1c2",
"sha1": "450d3d44325fdf259810a60e6afa36103e186b3d",
"sha256": "9b2639dbfdd60e0dab70e572f39660c8dfabd19b7987a7619d770824db342925",
"sha512": "44050c4db6d5275b70856050c0d58d3d9892ba09bd8cf1a8343a3c6d4f2e2af6eae1f8b687efb59b7f8122e5bea1a63e08546fee35124cc0faab40ef6274ab4f",
"size": 9193
},
{
"file": "res/drawable-hdpi-v4/ic_launcher_logo.png",
"md5": "e74dbf28ebab4e1b7442a9c78067d1c2",
"sha1": "450d3d44325fdf259810a60e6afa36103e186b3d",
"sha256": "9b2639dbfdd60e0dab70e572f39660c8dfabd19b7987a7619d770824db342925",
"sha512": "44050c4db6d5275b70856050c0d58d3d9892ba09bd8cf1a8343a3c6d4f2e2af6eae1f8b687efb59b7f8122e5bea1a63e08546fee35124cc0faab40ef6274ab4f",
"size": 9193
},
{
"file": "res/drawable-ldpi-v4/ic_launcher.png",
"md5": "58b9a42eeb99fad5321208fe02f24375",
"sha1": "09ea65885b4080e515ef7064e816c77991c0757b",
"sha256": "c4f061b2c758185371f39afcb166ba039e955d3be2619ab5469a1b873f952 d0d",
"sha512": "415ed16de6fd335b24bd985d9152323d04fc02287acd3f26fa98722832cfecf89cf2c77ad8ae3f5588acc5cac401129ac3b3d714abbf8dcc492ab2fd98f106e5",
"size": 2658
},
{
"file": "res/drawable-ldpi-v4/ic_launcher_logo.png",
"md5": "58b9a42eeb99fad5321208fe02f24375",
"sha1": "09ea65885b4080e515ef7064e816c77991c0757b",
"sha256": "c4f061b2c758185371f39afcb166ba039e955d3be2619ab5469a1b873f952d0d",
"sha512": "415ed16de6fd335b24bd985d9152323d04fc02287acd3f26fa98722832cfecf89cf2c77ad8ae3f5588acc5cac401129ac3b3d714abbf8dcc492ab2fd98f106e5",
"size": 2658
},
{
"file": "res/drawable-mdpi-v4/ic_launcher.png",
"md5": "acefc1f320111a8d71bcdb8b4aa0656c",
"sha1": "23730fd0d5e720d1f719be1afc8c48fa7305da6c",
"sha256": "05346d62d4096537906928af523ef9d5997663707a1d48e08f2 0992584e1424d",
"sha512": "59896fc52679e86898dc09b56fb53270d4297c53adee26f864657c5ef4aff9e5f5922dfa9370c3d1748068aa7b1270e0fa8a1323ce3b69c7548a50ca221befc1",
"size": 5057
},
{
"file": "res/drawable-mdpi-v4/ic_launcher_logo.png",
"md5": "acefc1f320111a8d71bcdb8b4aa0656c",
"sha1": "23730fd0d5e720d1f719be1afc8c48fa7305da6c",
"sha256": "05346d62d4096537906928af523ef9d5997663707a1d48e08f20992584e1424d",
"sha512": "59896fc52679e86898dc09b56fb53270d4297c53adee26f864657c5ef4aff9e5f5922dfa9370c3d1748068aa7b1270e0fa8a1323ce3b69c7548a50ca221befc1",
"size": 5057
},
{
"file": "res/drawable-xhdpi-v4/ic_launcher.png",
"md5": "94f5591633218c0b469b65947fd8943b",
"sha1": "502cd84fa444f26d7ecfdf4a355064867977f236",
"sha256": "29d15992424b40757135f47fc8ddd15e30c77746 46b37755608f7cfec1df7d8a",
"sha512": "d5b48e065a614c5a2400b6565dc36777d9923d8d5154487113dd1f46b05d36d1db3f28fb72f61a68fcbd225c93495541579574e6611f650fe2857767412c3b1f",
"size": 14068
},
{
"file": "res/drawable-xhdpi-v4/ic_launcher_logo.png",
"md5": "94f5591633218c0b469b65947fd8943b",
"sha1": "502cd84fa444f26d7ecfdf4a355064867977f236",
"sha256": "29d15992424b40757135f47fc8ddd15e30c7774646b37755608f7cfec1df7d8a",
"sha512": "d5b48e065a614c5a2400b6565dc36777d9923d8d5154487113dd1f46b05d36d1db3f28fb72f61a68fcbd225c93495541579574e6611f650fe2857767412c3b1f",
"size": 14068
},
{
"file": "res/layout/main.xml",
"md5": "8cdec0105448937475e45e22c80fd611",
"sha1": "51ebf14ed21238f7d147a6744cae18c0f55fcbe6",
"sha256": "e74db1ac37395ca9fd25b93261d3ab76ed7dfc9b355e a63d856afc7453313738",
"sha512": "2d2147365b8b00f2db7498b7f0ed8a360fc15bd43dfd3704b4b1cb912619d9ff1bc35837eb1e601ea6d1aa3a8c0d555f2105d6ed37de919fa128568527765d63",
"size": 552
},
{
"file": "resources.arsc",
"md5": "2886f2825eef3b5c4478852935c68640",
"sha1": "1eff126288b4bea6fa78eb79832d6a7fa098695e",
"sha256": "ac46f54fa12dc20e94619465482186047505fb9f27508861220063c93f0c6c4e",
"sha512": "da8c41d0c27839ed89cb06a2f89f6993bd88f5179e97f3291f0e17348868b3e9c106e96f482ecd86f11808170937773e7599ccd338900908359e870ea5446169",
"size": 1640
},
{
"file": "META-INF/MANIFEST.MF",
"md5": "6098a6409625f1c0d97cd33c13ad300c",
"sha1": "ccfe31190feb259a4a56599ad1403a956f6944b5",
"sha256": "8a18f285481346919f4df55f576ee504bf5abecb068a2d642fdef17f3b5cd631",
"sha512": "17a68bf605aff149aa31e1b0b81af3d3f74f939e1cb7a10f3eddf84775f901b09ba9722efad1265b0057cdfcd12c6fac701067993081620b00bbfcc4efff3599",
"size": 1061
},
{
"file": "META-INF/CERT.SF",
"md5": "fb02917b68510e413a06e52873802bcd",
"sha1": "dfb7bbb487010b980152610fe7d669c1b4f626be",
"sha256": "e2fa373f8b065ef7c78387ab9242e98dd19bdeb2b768295506295f7beb0bfe3f",
"sha512": "3aa74603588ca5c563b6586d1216dc6cea3b8d2a1a47eb189197e8f20cd7508d3e652c7ff849261e95cff52451476b2993caadf051fdf66cc01f5e6e16b180fc",
"size": 1114
}
],
"sha1": "482a28812495b996a92191fbb3be1376193ca59b",
"sha256": "8773441a656b60c5e18481fd5ba9c1bf350d98789b975987cb3b2b57ee44ee51",
"sha512": "559eab9840ff2f8507842605e60bb0730442ddf9ee7ca4ab4f386f715c1a4707766065d6f0b977816886692bf88b400643979e2fd13e6999358a21cabdfb3071",
"size": 700 58
}Extract and store APK entries and information
$ ninjadroid regression/data/Example.apk --all --extract output/ >> NinjaDroid: [INFO] Executing apktool...
>> NinjaDroid: [INFO] Creating output/smali/...
>> NinjaDroid: [INFO] Creating output/AndroidManifest.xml...
>> NinjaDroid: [INFO] Creating output/res/...
>> NinjaDroid: [INFO] Creating output/assets/...
>> NinjaDroid: [INFO] Executing dex2jar...
>> NinjaDroid: [INFO] Creating output/Example.jar...
dex2jar regression/data/Example.apk -> output/Example.jar
>> NinjaDroid: [INFO] Extracting certificate file...
>> NinjaDroid: [INFO] Creating output/META-INF/CERT.RSA...
>> NinjaDroid: [INFO] Extracting DEX files...
>> NinjaDroid: [INFO] Creating output/classes.dex...
>> NinjaDroid: [INFO] Generating JSON report file...
>> NinjaDroid: [INFO] Creating output/report-Example.json...NOTE: without specifying an output directory, one with the APK package name will be created inside the current working directory.
Licence
NinjaDroid is licensed under the GNU General Public License v3.0 (http://www.gnu.org/licenses/gpl-3.0.html).
If you like the site, please consider joining the telegram channel or supporting us on Patreon using the button below.
